Bat800-S3
Delta 로봇

The rated payload is 3kg
The working space diameter is 800mm
The repositioning accuracy is 0.05mm
The maximum speed is 6m/s
The rated power is 3.4kW

Specification of Bat800-S3 Delta 로봇

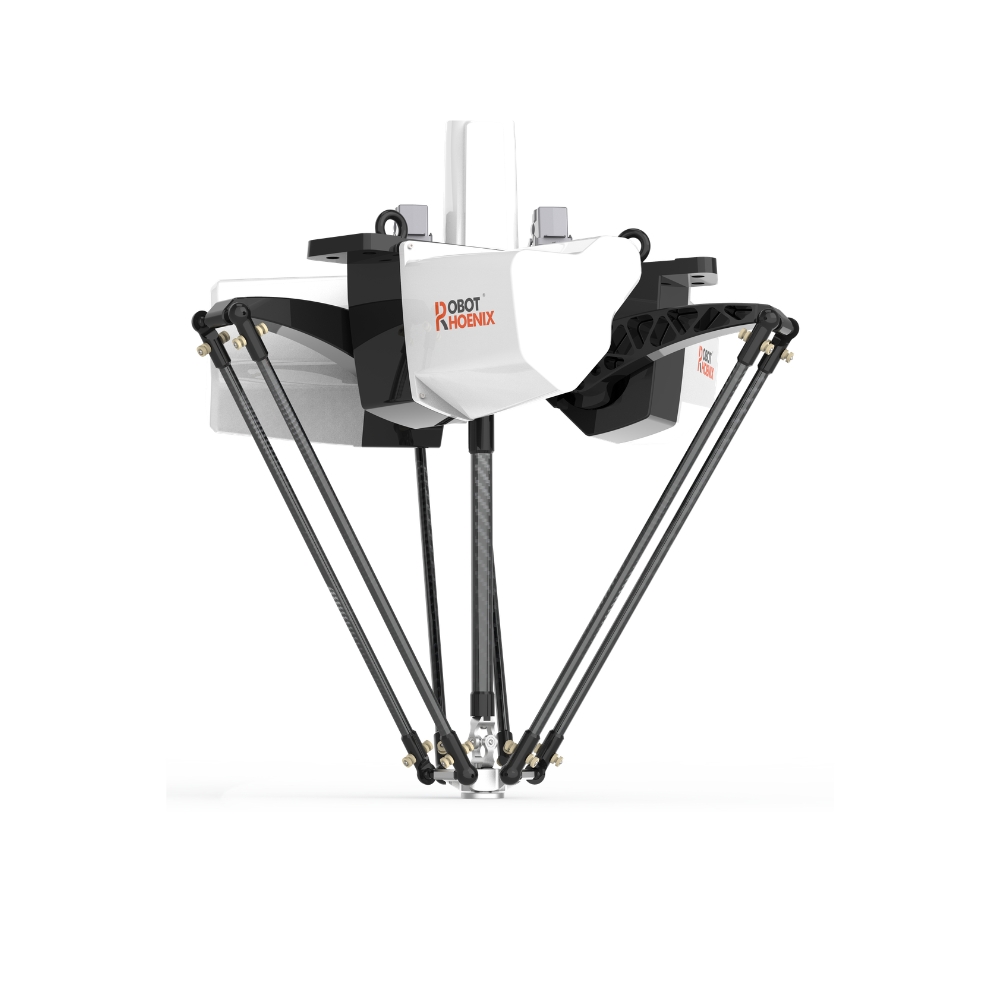

BAT800-S3 델타 로봇은 정격 가반하중 3kg을 지원하는 4축 병렬 로봇입니다. 초고속·고정밀 작업 성능, 콤팩트한 설치 공간, 뛰어난 정격 파워를 갖추고 있어 정밀도와 속도가 요구되는 제조 라인의 유연한 생산 환경 구축에 최적화되어 있습니다.

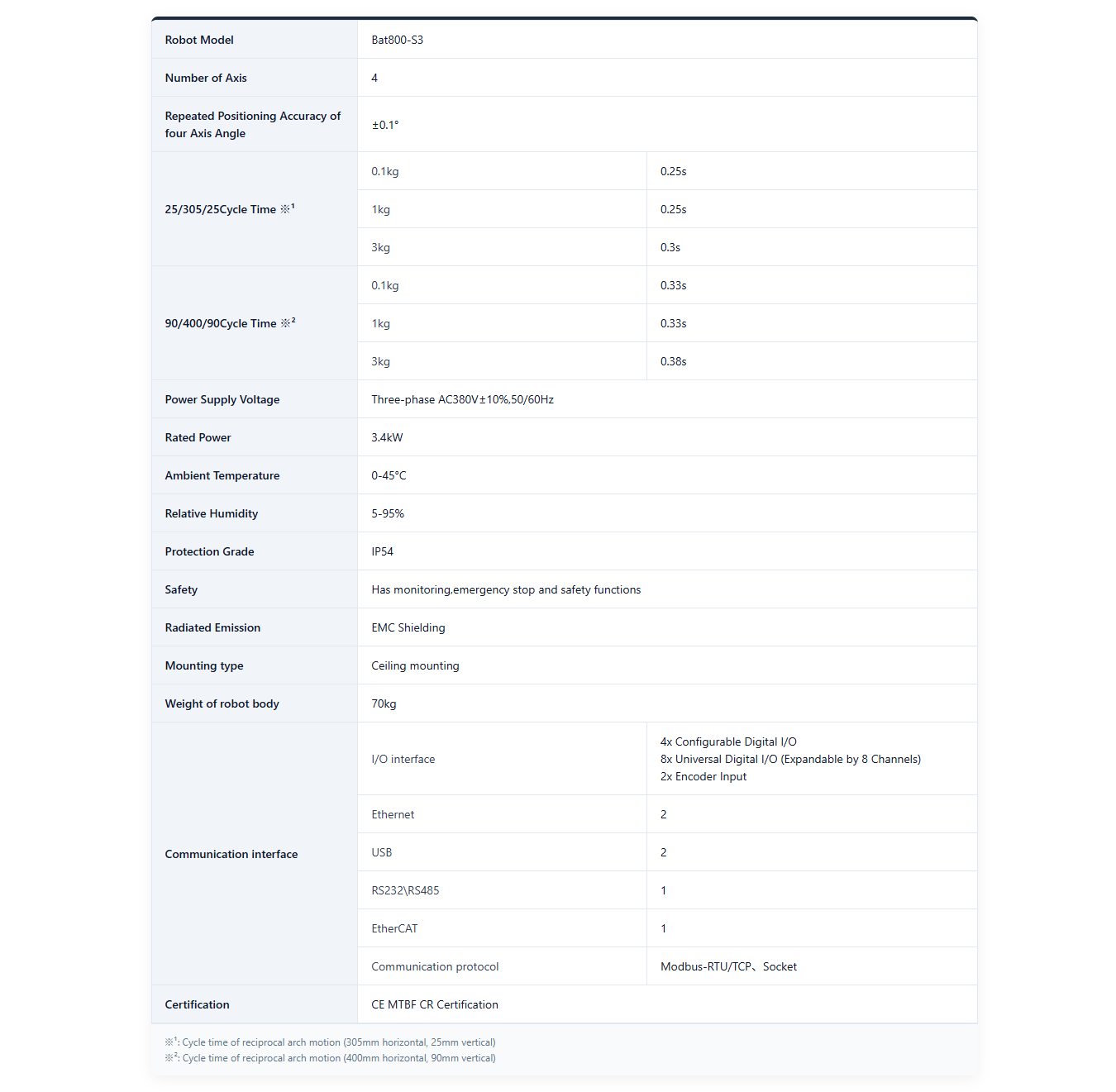

Robot Model	Bat800-S3
Number of Axis	4
Repeated Positioning Accuracy of four Axis Angle	±0.1°
25/305/25Cycle Time ※¹	0.1kg	0.25s
	1kg	0.25s
	3kg	0.3s
90/400/90Cycle Time ※²	0.1kg	0.33s
	1kg	0.33s
	3kg	0.38s
Power Supply Voltage	Three-phase AC380V±10%,50/60Hz
Rated Power	3.4kW
Ambient Temperature	0-45°C
Relative Humidity	5-95%
Protection Grade	IP54
Safety	Has monitoring,emergency stop and safety functions
Radiated Emission	EMC Shielding
Mounting type	Ceiling mounting
Weight of robot body	70kg
Communication interface	I/O interface	4x Configurable Digital I/O 8x Universal Digital I/O (Expandable by 8 Channels) 2x Encoder Input
	Ethernet	2
	USB	2
	RS232\RS485	1
	EtherCAT	1
	Communication protocol	Modbus-RTU/TCP、Socket
Certification	CE MTBF CR Certification

※¹: Cycle time of reciprocal arch motion (305mm horizontal, 25mm vertical)
※²: Cycle time of reciprocal arch motion (400mm horizontal, 90mm vertical)
